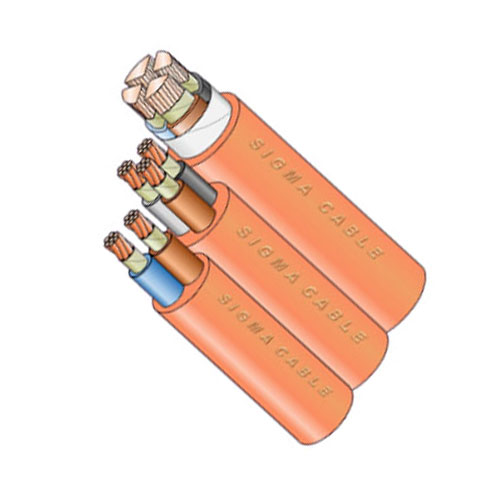

Multi-Core XLPE Insulated LSHF Sheathed Fire-Resistant & Flame-Retardant Cable

Multi-Core XLPE Insulated LSHF Sheathed Fire-Resistant & Flame-Retardant Cable

Conductor: Plain annealed copper conductor
Fire barrier: Glass Mica
Insulation: XLPE
Bedding & Outer sheath: LSHF
Insulation colour:

• 2C : (BROWN & BLUE) or (RED & BLACK)
• 3C : (BROWN, BLACK, GREY) or (RED, YELLOW, BLUE)
• 4C : (BROWN, BLACK, GREY, BLUE) or (RED, YELLOW, BLUE, BLACK)

Outer sheath colour: Orange
Voltage rating (Uo/U): 600/1000V
Operating temperature: 90°C (up to 110°C)
SPEC. : REFER IEC 60502-1, IEC60331, IEC 60332-3, IEC 60754, IEC 61034, BS6387 & SS299

Industry Uses: Public & Private Residential, Commercial & Data Centre, Institutions, Transportation, Oil & Gas, Power Plant / Substation

Refer : Table FR3
